Anti-static floor with HPL finish

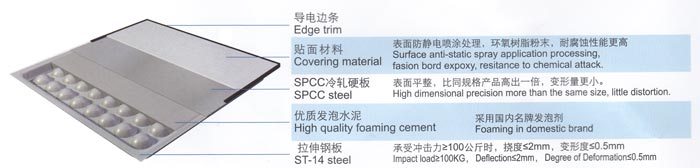

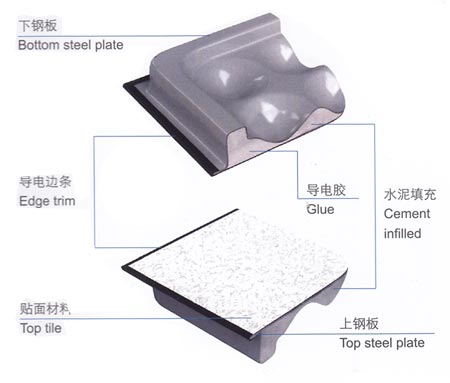

The panel is made of high quality deep stretch coil steel sheet and SPCC steel sheet，which is punched, spot-welded, coated with epoxy powder after has been phosphorated. The panel is filled with foamed cement inside. After being kept for a period of time, it forms a stable support structure. The top steel sheet is stuck with anti-wear and antistatic HPL And the panel is installed with stringer and pedestal.



	Panel without edge trim, it leaves wery tiny seam during floor installation as the panel is without edge trim, the panel can be applied to high-computer room and place where requirement on antistatic or many wires.
	"F"edge trim is inseted in between the steel panel and the surface finish. The inserted "F"edge trim is very firm and stable. Panel with"F" edge trim creates perfect installation effect with tiny seam, which can be applied to high-computer room and place where requirement on antistatic or many wires.

•Application  Antistatic access floor is widely used in computer center communication center , data centers, the power station  microwave communication stations, satellite ground stations mobile communication center, program controlled telephone exchange center, radio and television editorial room and other professional editorial command room. And it is installed in production workshop of integrated circiuts, computer

telecomter munications, electronics and optical equipment. It can be seen in hospital operation room and electronic imaging examination rooms and other electrostatic sensitive industry like millitary petro chemical and other inflammable places.

Covering material
•High Pressure Laminate
•PVC vinyl tile
•Ceramic
•Carpet tile
•Linoleum
•Granite/Marble

Structure

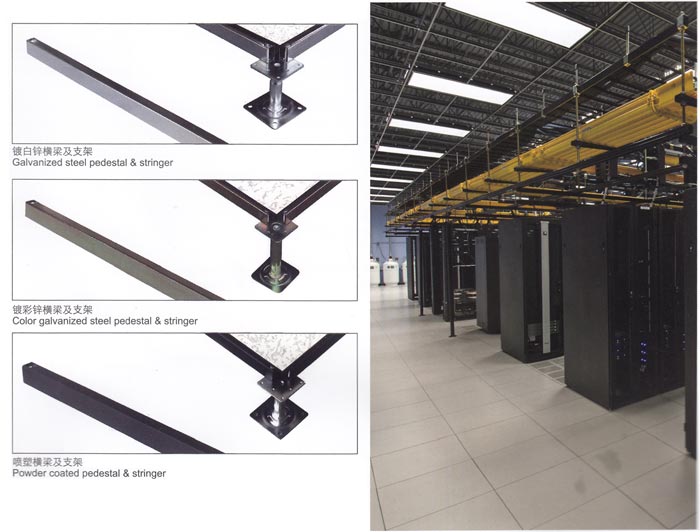

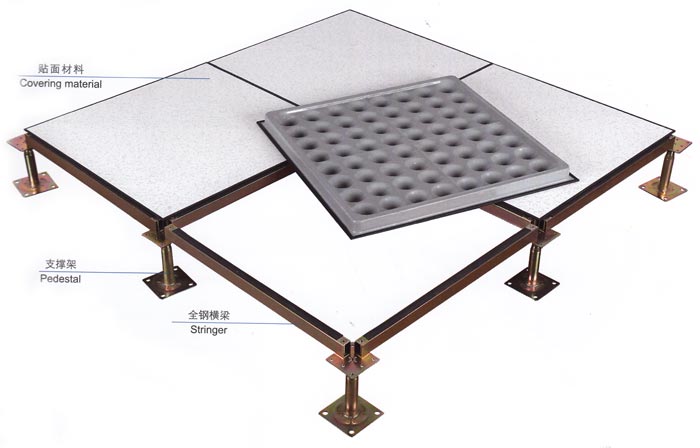

The riased access floor system is composed of floor, stringer, and supports supplying high load & antistatic working surface and room for laying all kinds of wires at lower place. It is permitted to install wiring box and ground plug on the ground. Wires can be placed under floor and height of support can be adjusted at will. Connect the beam and support whose height can be adjusted into a firm upper systerr Insert floor into panes which are enclosed by stringers.

International	Size mm	Fire Performance	Concentrated Load			Impact Load N	Ultimated Load N	Uniform Load N/M2	Rolling load N
			LB	N	KG				10 Times	1000 Times
FS700	600x600x35	A	≥700	≥2950	≥301	≥445	≥ 8850	≥12500	2950	2270
FS800	600x600x35	A	≥800	≥3560	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	A	≥1000	≥4450	≥453	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	A	≥1250	≥5560	≥567	≥725	≥16680	≥33000	5560	4450
FS1500	600x600x35	A	≥1500	≥6660	≥680	≥780	≥26690	≥43000	6670	5560
FS2000	600x600x35	A	≥2000	≥8890	≥906	≥890	≥31130	≥58000	8890	7800

Remark
Surface resistance range, tile could be HPL or PVC. Deflection≤2mm, mounting height 100〜300mm, other height could be customised.
